Model DAS1700

The DAS1700 high speed, configurable data acquisition system combines a fast sampling rate, deep memory, and a large touchscreen display. Internal software tools are also provided like the power analysis application and a function editor for complex mathematical calculations on multiple channels.

These recorders feature a 1 µs sampling rate on up to 6 channels simultaneously while the 500 GB internal memory allows for recording over long periods. Data is acquired from 4 measurement board types which include universal input, multiplexed, strain gauge, and high voltage. Optional CAN and LIN inputs further extend the ability of this recorder.

Choose any combination of 3 boards, or add the extension module for up to 6 boards for applications ranging from small sensor signal logging to electrical power analysis.

 Features and benefits:

• Fast sampling rate: up to 1 MSa/s (1 μs) on each channel
• Up to 72 channels (with multiplexed board)

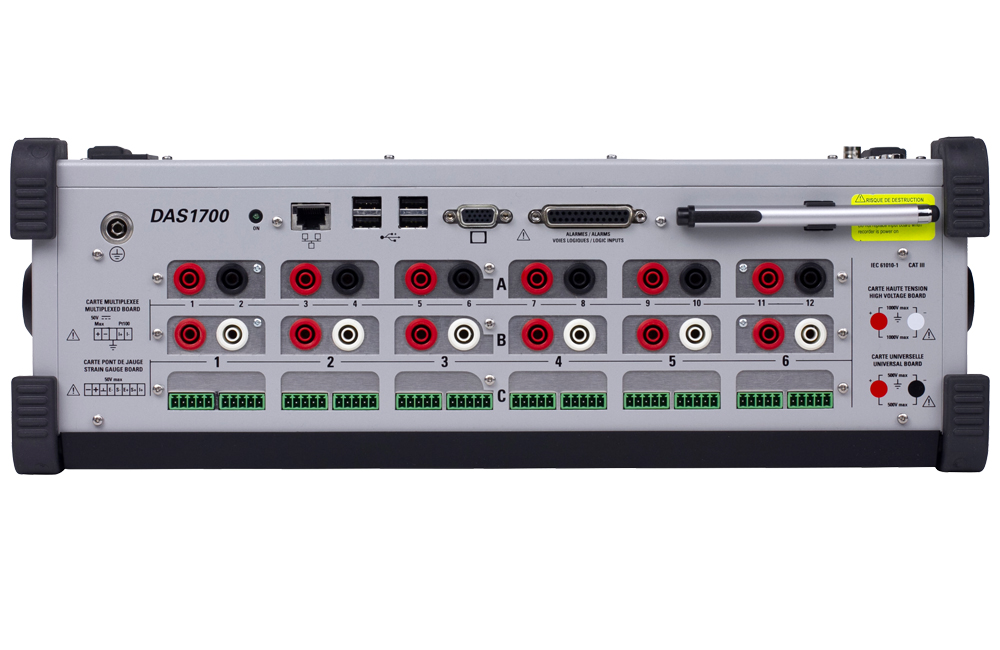

• 4 measurement board types; Universal, Multiplexed, Strain Gauge, High Voltage
• Measure up to 1000 VAC with high voltage board
• Temperature measurements supporting thermocouples and Pt100/Pt200/Pt500/Pt1000 sensors

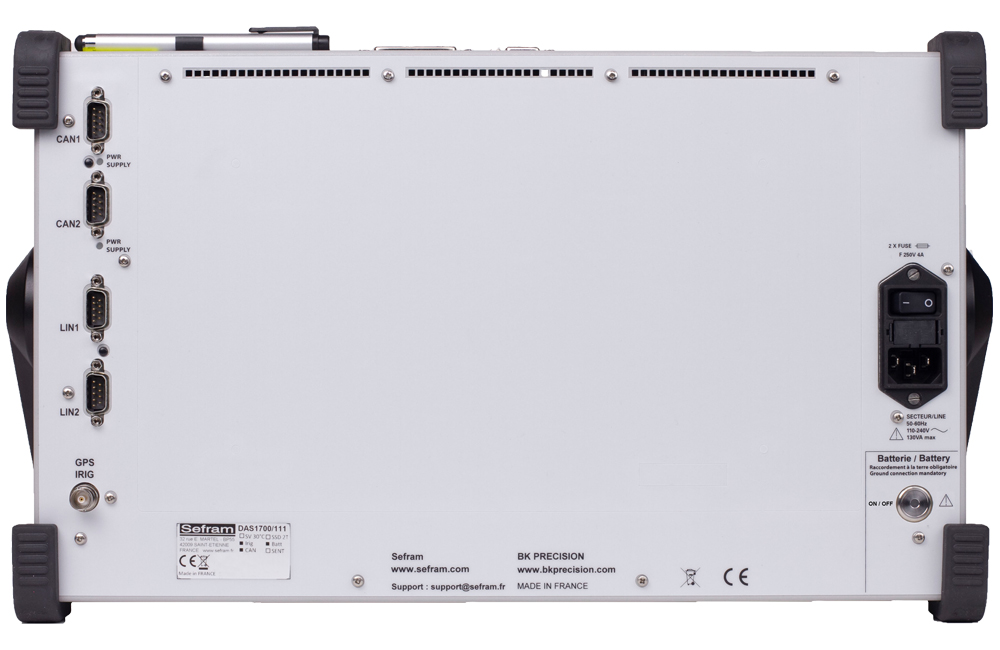

• CAN, LIN options
• GPS and IRIG timing options
• 16-bit resolution with multiplexed and strain gauge boards
• 14-bit resolution with universal and high voltage boards
• 500 GB SSD internal memory (2 TB optional)
• 16 logic input channels
• WiFi monitoring and control (standard USB WiFi dongle required)
• CAT III 1000 V and CAT IV 600 V

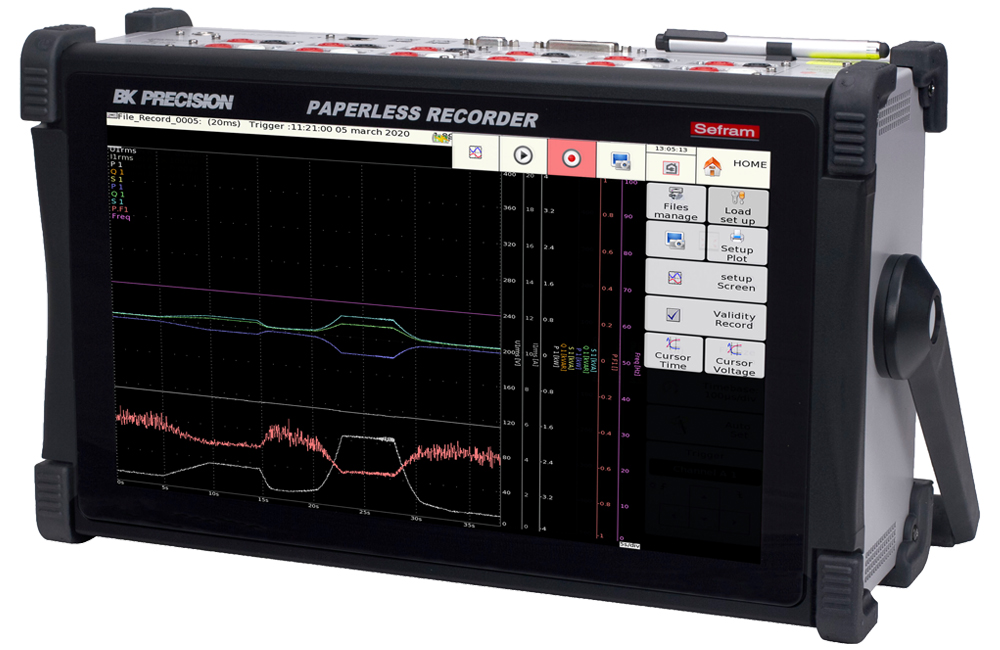

• Wide TFT display with 15.6-inch touchscreen
• USB host and LAN
• Battery option (up to 2 hours)
• Free software for control and analysis

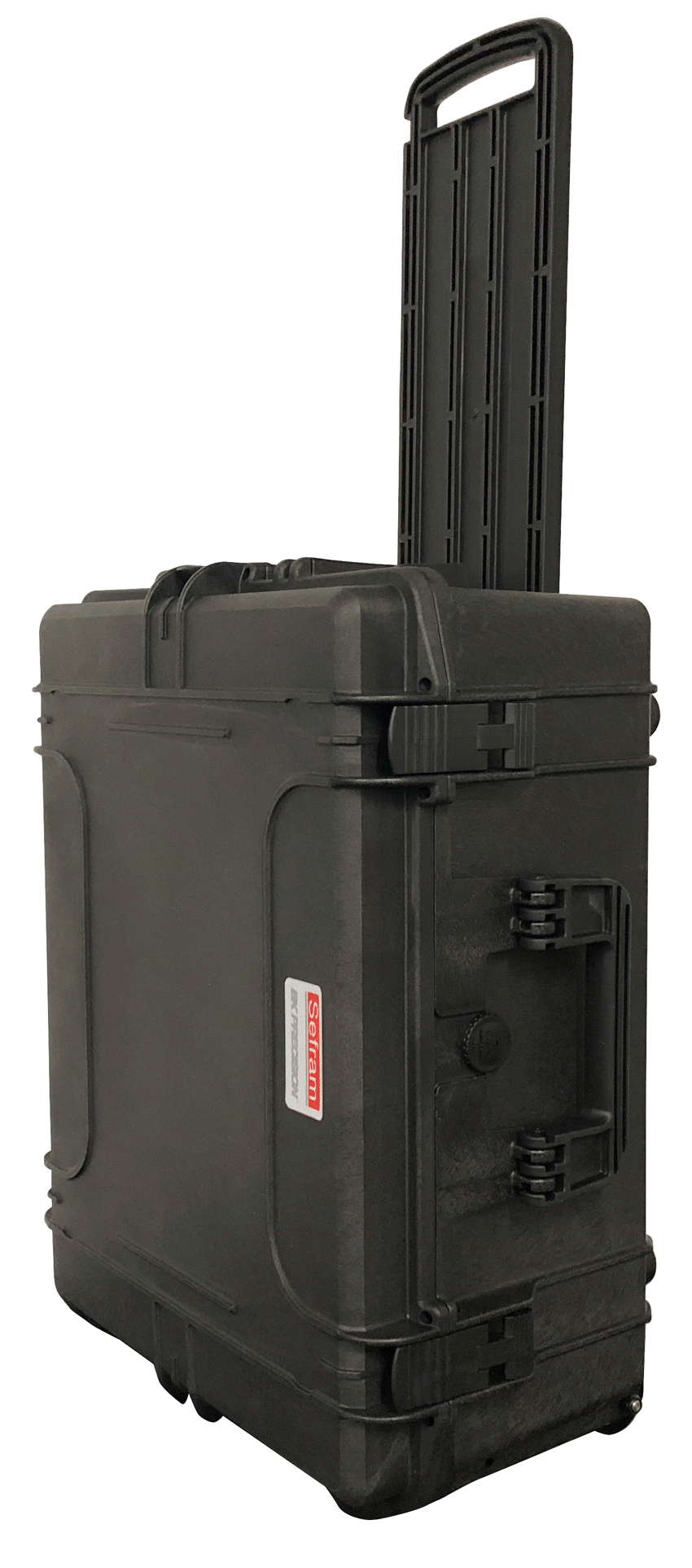

• Rugged carrying case included

Consider the 8460 if a built-in printer is necessary.

*  Up to 72 channels with multiplexed boards
